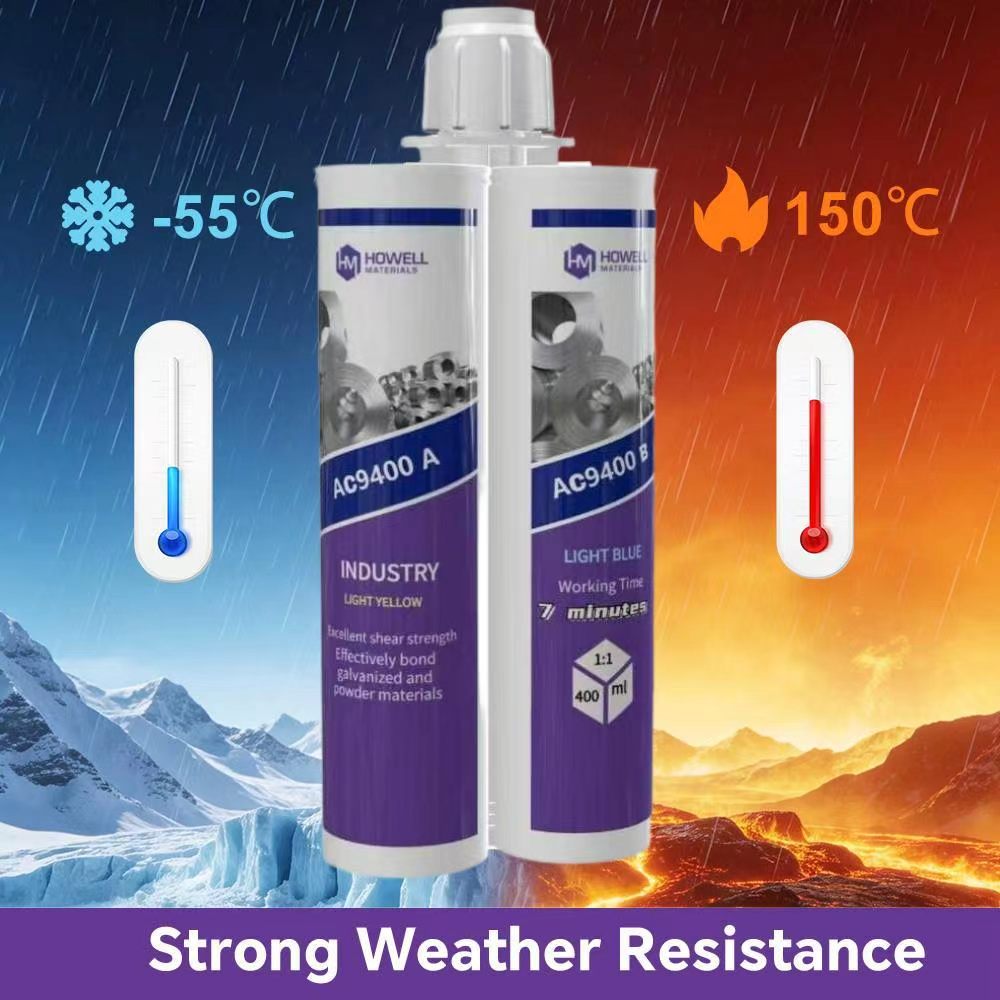

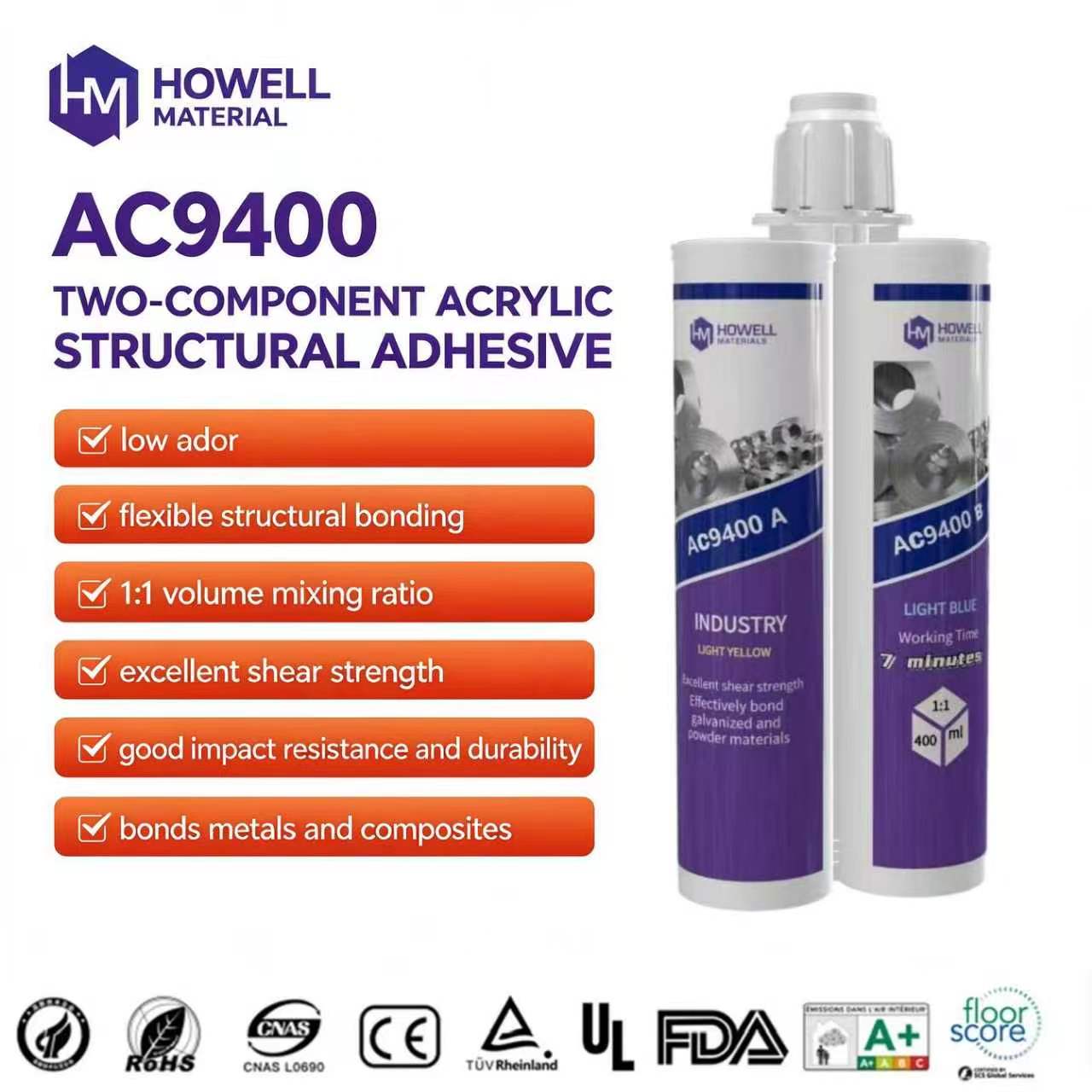

AC9400—Acrylic Structural Adhesive

AC9400 Description

AC9400 is a low-odor, flexible two-component acrylic structural adhesive; the two components are mixed in a volume ratio of 1:1 and cure to a green bond. It provides excellent bonding strength, and its impact resistance and durability are very good. It bonds quickly with a wide range of metals and composite materials with minimal surface treatment, and it also has an excellent bonding effect on nearly all powder-coated materials: it effectively bonds galvanized and powder-coated substrates, with excellent construction performance and excellent shear force. Typical application is the structural bonding of various metals and plastics.

Features

Excellent construction performance

Low odor

Can effectively bond galvanized and powder-coated materials

1:1 Mixing ratio

Excellent shear force

Properties

Viscosity（mPa·s）:

Part A: 6000;

Part A: 25000

Shear strength (MPa) / aluminum：23 CF

Shear strength (MPa) / carbon steel：25 CF

Precautions

Package & Storage

Usage / Construction

In order to achieve a better bonding effect, surface contaminants should be removed.

This product is a two-component product. Before use, unscrew the head plug, use a glue gun to apply a small amount of glue, ensure that the A and B components are squeezed out, and make the tail plugs of the A and B glue components flush; then install the mixing head to apply glue, and discard the initial 3 to 5 cm of glue before applying.

If you want to reuse it, replace it with a new glue mixing head and re-dry 3 to 5 cm of glue before use.

The glued workpiece should be fitted as quickly as possible. Larger amounts of glue and high temperatures will reduce the operating time.

Raising the curing temperature can reduce the curing time.
