AN222 is a single-component anaerobic thread locking adhesive that requires oxygen isolation and contact with metal ions during curing. It is suitable for securing medium-sized threaded components and is a medium-low strength product that can be disassembled. With thixotropic properties, it can reduce product migration.
| Quantity: | |
|---|---|
HM-AN222
HOWELL

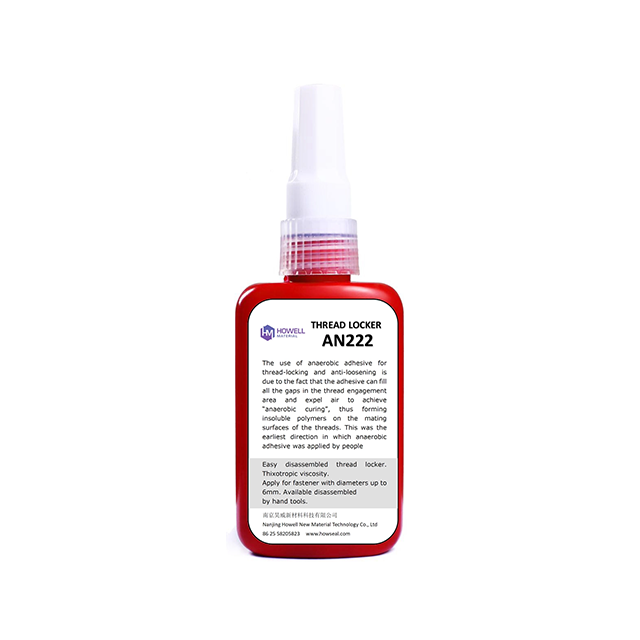

Howell HM-AN222 Anaerobic Threadlocker
Description |
AN222 is a single-component anaerobic thread locking adhesive that requires oxygen isolation and contact with metal ions during curing. It is suitable for securing medium-sized threaded components and is a medium-low strength product that can be disassembled. With thixotropic properties, it can reduce product migration.
|
Characteristics |
l Single-component, solvent-free l Excellent construction performance l Medium-low strength, removable l Excellent weather resistance and chemical resistance |
Technical Data |
Typical properties before curing | |
Chemistry-based | Acrylate |
Colors | Purple |
Curing mechanism | Anaerobic curing |
Viscosity (mPa·s) | 1400 |
Density @23℃ | 1.05 |
Typical properties after curing | |
Torque at breakage (N·m, M10 carbon steel bolt) | 6.2 |
Average disassembly torque (N·m, M10 carbon steel bolt) | 3.2 |
Inital curing time (min) | 20 |
Full curing time (h) | 24 |
Solvent resistance | Good |
Operating temperature (℃) | -60~150 |
Instructions: |
1. Surface treatment: It is recommended to clean the threaded surface with a cleaning agent. Optimal locking effect can be achieved on oil-free surfaces. When there are large gaps, low temperatures, and inert surfaces (such as pure aluminum, stainless steel, galvanized, chrome-plated, etc.), a promoter should be used together. 2. Adhesive application: Apply adhesive to bolts, nuts, and threaded holes, with a minimum of 3 drops recommended. 3. Assembly: Assemble bolts and nuts, and tighten to the specified torque. 4. Disassembly: Disassembly can be done using a standard wrench. 5. This product should not be used in pure oxygen and/or oxygen-rich systems, and should not be used as a sealing material for chlorine and other highly oxidizing materials. |
Storage/ Shelf Life/Packaging |
Product shall be stored in a cool, dry area in unopened containers. The shelf life is 18 months when stored with temperature 5~28℃.

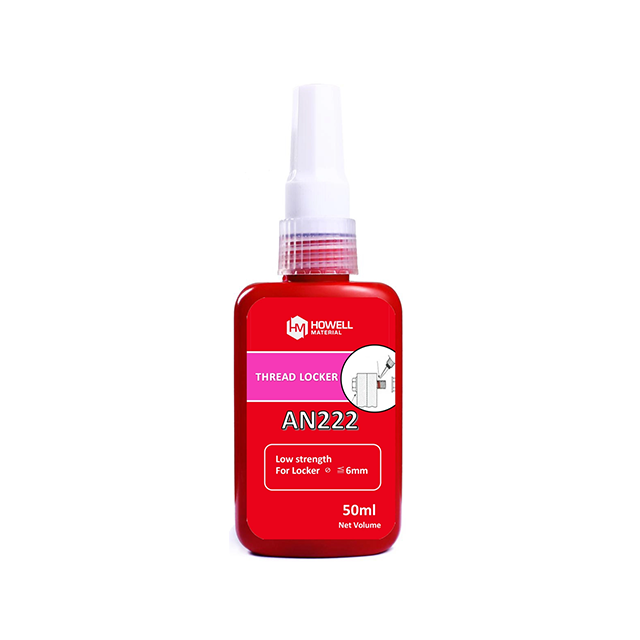

Packaging: Type Unit Size 50 mL 250mL
|
Precautions |
This product is safe and non-toxic after curing. Before curing, try to avoid contact with skin. If it splashes into eyes, wash it with plenty of water quickly. For complete safety and handling information, please refer to the appropriate Material Safety Data Sheets prior to using this product.
|
Contact us |
Nanjing Howell New Material Technology Co., Ltd. Addr: Rm 501, Unit 7, Xingzhihui, Xinghuo road 19th, Jiangbei new district, Nanjing (211899), China.
American Warehouse：Add: 1006 CROCKER RD, DOOR E5, WESTLAKE, OH 44145 |
