Howell

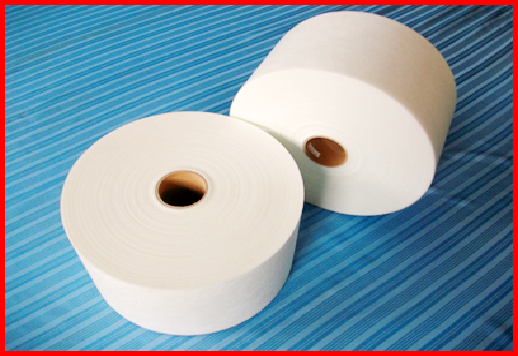

Fiberglass Surface Tissue
Designed for Epoxy Resin
Technical Data
Product Code | Unit Weight （g/m2） | LOI （%） | MD Tensile Strength （N/50mm） | Moisture Content (%) | Penetrating time (s) |
BM30-WE | 30 | ≤ 10 | ≥ 50 | ≤ 0.5 | ≤20 ( Two layers ) |
BM50-WE | 50 | ≤ 10 | ≥ 120 | ≤ 0.5 | ≤30 ( Two layers ) |
BM70-WE | 70 | ≤ 10 | ≥ 180 | ≤ 0.5 | ≤30 ( Two layers ) |
BM100-WE | 100 | ≤ 10 | ≥ 220 | ≤ 0.5 | ≤30 ( Two layers ) |
Testing Basis | ISO 3374 | ISO 1887 | ISO 3342 | ISO 3344 | EN 14118 |
Paper core diameter: 76/152mm
Remark:
1. Any special products can also supply according to customers' request
2. The technical data above is for reference only
Description
Fiberglass surface tissue for epoxy resin is mainly used for surface treatment of GRE products. It has the characteristics of high tensile strength, fast penetration speed of epoxy resin, no bubble and less resin consumption, The fiberglass surface tissues for epoxy resin are not loose, not broken and with high efficiency in the epoxy resin during the penetration process. It is suitable for winding, hand lay-up and molding manufacturing techniques.
Characteristic
. Even distribution of fiber
. Smooth and Soft Surface
. Fast Wet-out
. Excellent Molding Property
Packaging
1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
Storage
This product should be stored in a dry, ventilated and rainproof place,with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.
